UMH160R

The UMH160R is a powerful and cost-effective broadcast level decoder. It supports signal receiving, multi-channel descrambling and external table/data insertion. It also supports MPEG2/MPEG4 SD/HD program decoding with two audio channels. With a remote, web-based management interface, it is ideal to support advanced content distribution, real-time signal conversion and transmission for any headend system.
Inquire Now

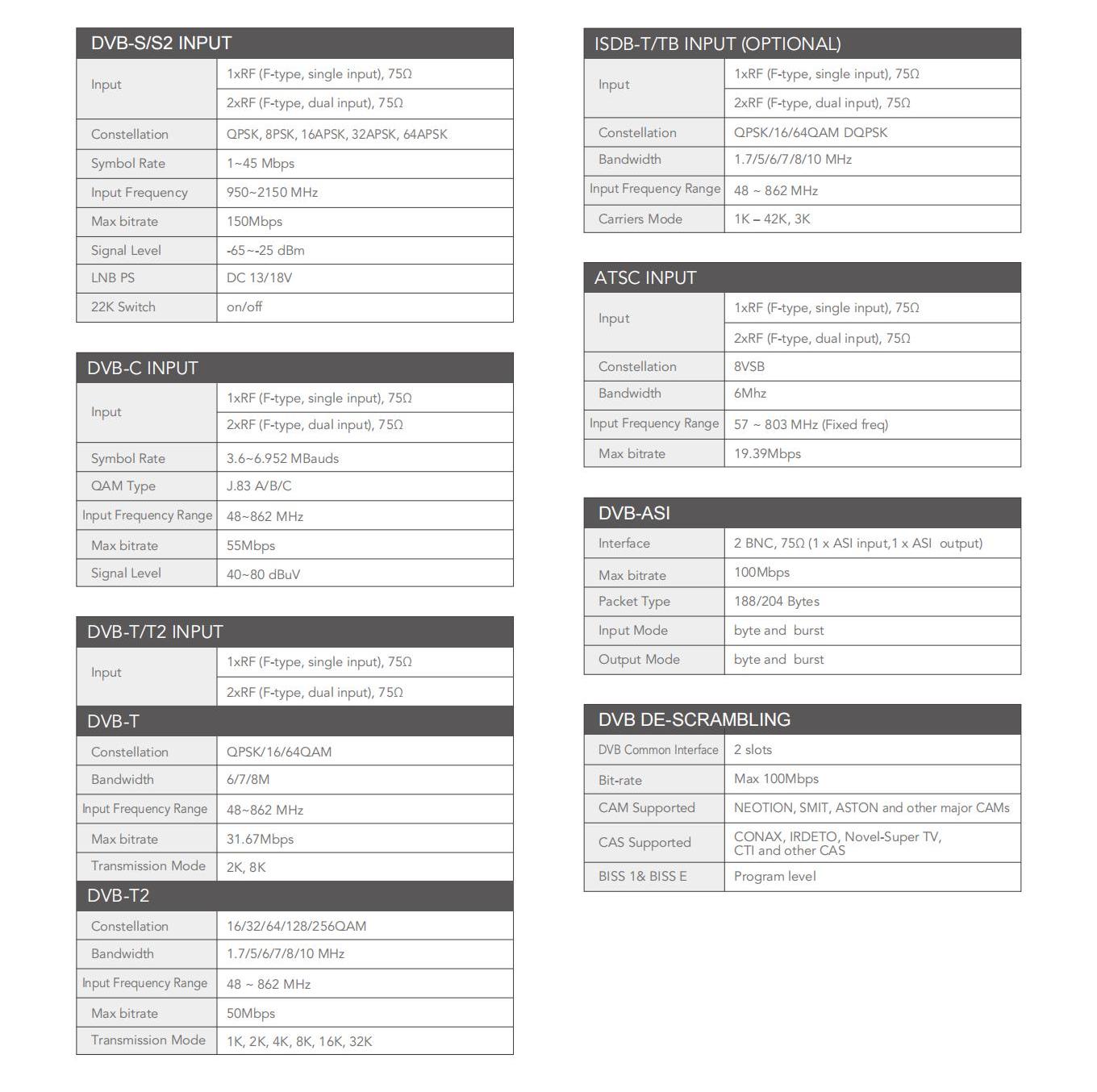

datasheet
SD/HD Receiver/Decoder

INTRODUCTION
The UMH160R is a powerful and cost-effective broadcast level decoder. It supports signal receiving, multi-channel descrambling and external table/data insertion. It also supports MPEG2/MPEG4 SD/HD program decoding with two audio channels. With a remote, web-based management interface, it is ideal to support advanced content distribution, real-time signal conversion and transmission for any headend system.



FEATURES

Receiving and Input

  • RF inputs support multiple standards of signal receiving including DVB-S2X/S2/S/T2/T/C, 8VSB and ISDB-T
  • Supports ASI input



Output

  • H.264 or MPEG2 HD/SD 4:2:0 8-bit video decoding
  • HDMI, SD/HD SDI and CVBS output
  • SDI output with 2 embedded audios
  • 1 audio decoding through AES/EBU digital audio output, 2 pairs of balanced and unbalanced analog audio output
  • GPI alarm



Data Processing

  • Two separate common interfaces support multi-channel descrambling and makes the unit compliant with various popular CAM cards
  • Embedded BISS-1 & BISS-E supports service level descrambling
  • VBI subtitle insertion on analog video
  • PSI/SI processing and regeneration
  • Supports TS & EIT pass-through



Management

  • 1 Ethernet 10/100Base-TX, RJ45
  • Web-based user interface
  • Front panel keypad and LCD
  • SNMP supported for system integration













Resources Download
  Introduction Slides









Softare Versions

The latest SW version of UMH160R-Base is v2.4.34.

The latest SW version of UMH160R-Basev2 is v2.4.49.

The latest SW version of UMH160R-IP is v2.4.24.

The latest SW version of UMH160R-IPv2 is v3.0.14.

The latest SW version of UMH160R-IP-T2MI is v2.3.59.

The latest SW version of UMH160R-IP-G mainboard is v1.0.38, and the genlock board's is 1.0.34.

The latest SW version of UMH160R-AD is v2.4.38.

The latest SW version of UMH160R-ADv2 is v3.02.

The latest SW version of UMH160R-SDI is v2.4.34.

The latest SW version of UMH160R-SDIv2 is v2.4.49.

The latest SW version of UMH160R-RL is v2.4.34.

The latest SW version of UMH160R-MUX is v2.4.6.



Notes:

  1. Please contact your distributor or Wellav sales to get the softwares and release notes.
  2. When you are on the upgrade progress, please make sure the unit won't lose the power supply and have stable network connection. Otherwise, the unit will have the risk of failing to boot up.
  3. If you have any question about the software upgrade, please confirm with Wellav Support team first (support@wellav.com).
  4. If your unit is old or using the old software, we don't suggest you to do the upgrade by yourself. There will have a risk of failing to boot up.please confirm with Wellav Support team first(support@wellav.com)





Model Number Software Version Release Note
Integrated Receiving Decoder
UMH160R-ADV2
V3.0.2
 V1.0. pdf
UMH160R-RL
 V2.4.34
 V1.0. pdf
UMH160R-MUX
 V2.4.6 V1.0. pdf
UMH160R-TC4-2H/4S
 V2.4.37 V1.0. pdf
UMH160R-SDIv2
 V2.4.49 V1.0. pdf
UMH160R-SDI
 V2.4.34 V1.0. pdf
UMH160R-AD
 V2.4.38 V1.0. pdf
UMH160R-IP-G
 V1.0.38 V1.0. pdf
UMH160R-IP-T2MI
 V2.3.59 V1.0. pdf
UMH160R-IPv2
 V3.0.14 V1.2. pdf
UMH160R-IP
 V2.4.24 V1.0. pdf
UMH160R-BaseV2
 V2.4.49 V1.0. pdf
UMH160R-Base
 V2.4.34 V1.0. pdf
